Introduction

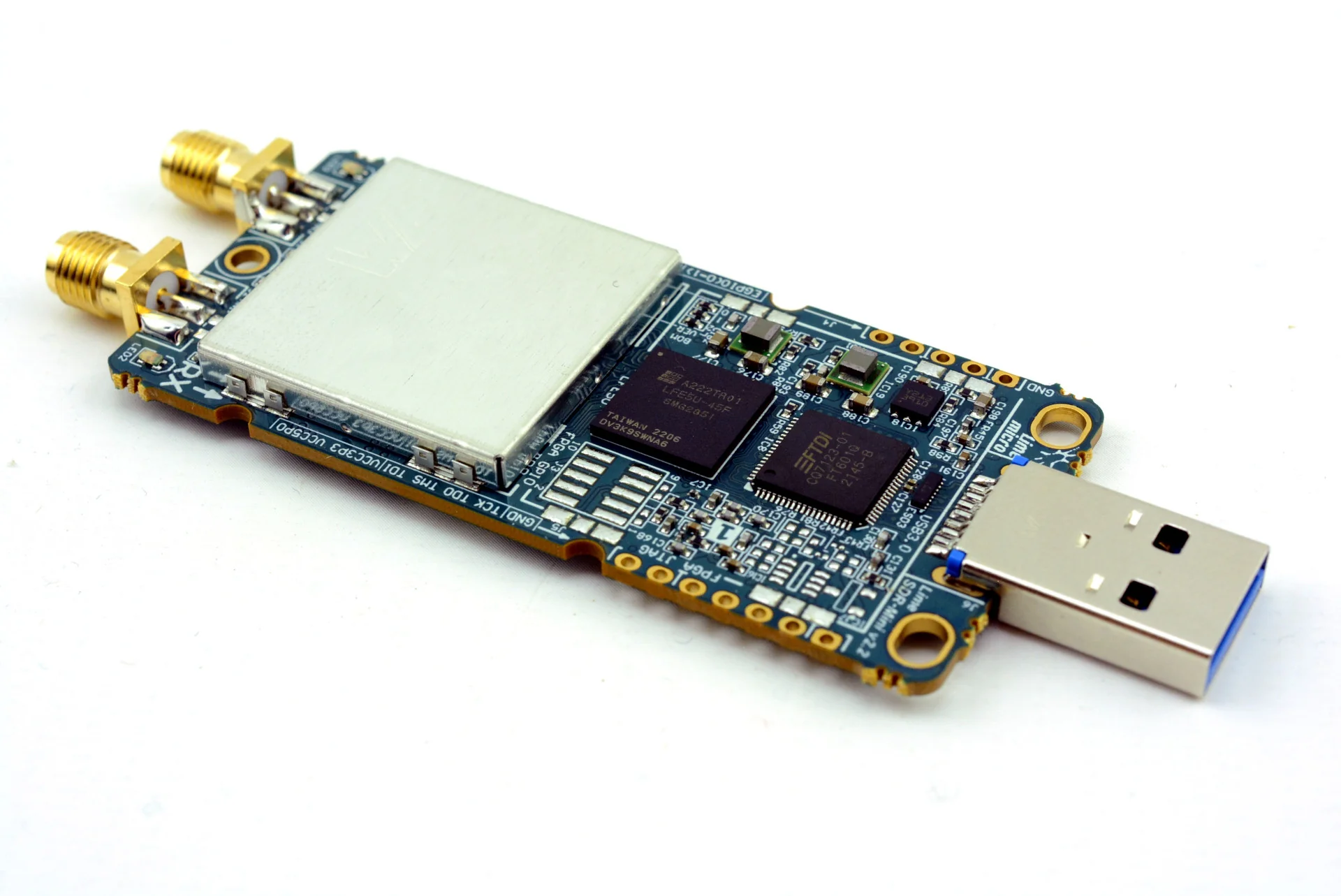

LimeSDR Mini v2.0 board

The LimeSDR Mini v2 is a compact and cost-effective software-defined radio (SDR) platform engineered for advanced wireless communication research, prototyping, and development. The device is based on the Lime Microsystems LMS7002M RF transceiver, supporting a frequency range of 10 MHz to 2.6 GHz, full-duplex operation, and instantaneous bandwidths of up to 30.72 MHz.

The digital processing architecture incorporates a Lattice ECP5 FPGA, which performs high-speed data handling, digital signal processing, and interface management between the RF front end and the host system. The FPGA enables flexible hardware-level customization, allowing implementation of user-defined processing pipelines and acceleration of computationally intensive tasks.

Connectivity is provided through a USB 3.0 interface, ensuring reliable high-throughput data transfer to a host computer. The platform is supported by established open-source software frameworks, including GNU Radio, WSDR.IO and SoapySDR, facilitating integration into diverse development environments.

Specifications

RF

Parameter

Value

Notes

Configuration

SISO (1T1R)

Full duplex

Frequency Range

10 MHz – 2.6 GHz

Non-continuous coverage

Bandwidth

up to 30.72 MHz

Software configurable

Sample depth

12 bit

Sample rate

30.72 MSPS

Max. Safe Rx Input Power

10 dBm

Absolute maximum

Rx Gain Range

89 dB

LNA + TIA + PGA combined

Digital Interface

USB 3.0 Type-A plug connector.

Power Supply

Parameter

Value

Notes

Input Voltage

5 V DC

Via USB Type-A connector

Maximum Power

4.5 W

USB 3.0 power limit

Note

Power consumption depends on configuration.

Warning

Incorrect voltage or inadequate current capacity may cause damage or unstable operation.

Environmental

Parameter

Value

Notes

Operating Temperature

0 °C to +70 °C

Commercial-grade

Storage Temperature

0 °C to +70 °C

N/A

Operating Humidity

10% to 90% RH

Non-condensing

Mechanical

Compact USB stick form factor, 69 × 31.4 mm, ~25g weight. (without enclosure)

Features

Devices

  • RF transceiver: Lime Microsystems LMS7002M

  • FPGA: board is designed for Lattice ECP5 family LFE5U-25F/LFE5U-45F/LFE5U-85F FPGAs in 285-ball csfBGA package. By default board is assembled with LFE5U-45F-MG285 FPGA. Lattice ECP5 LFE5U-45F features:

    • 285-pin csfBGA package (10 x 10 mm, 0.5 mm)

    • 44 K LUTs logic capacity

    • 108 sysMEM Blocks (18 Kb)

    • 1944 Kb Embedded Memory

    • 351 Kb distributed RAM

    • 72x 18x18-bit multipliers

    • 4x PLLs and 4x DLLs

    • 118 IOs

    • FPGA configuration via JTAG

  • USB 3.0 controller: FTDI FT601

  • Temperature sensor: LM75

Clock system

  • 40.00MHz on board VCTCXO

  • VCTCXO can be tuned by onboard DAC

  • Reference clock input and output connectors (U.FL)

Memory

  • EEPROM Memory: 2x 128Kb EEPROMs for LMS MCU firmware and FPGA data (optional)

  • FLASH Memory: 128Mb Flash memory for FPGA configuration

General user inputs/outputs:

  • 3x Dual colour (RG) LEDs

  • 8x + 2x FPGA GPIO pinheaders (3.3V) (optional)

Connections

  • USB 3.0 (type A) plug

  • Coaxial RF (SMA female) connectors

  • FPGA GPIO headers (unpopulated)

  • FPGA JTAG connector (unpopulated)

  • FAN (5V default or 3.3V) connector

Purchasing

Please see the Lime Micro website for purchasing options.

RoHS

This product is RoHS compliant and does not contain hazardous substances as defined by Directive 2011/65/EU.

WEEE

This product must be disposed of properly according to local regulations. Do not dispose of with general household waste.

RF Transmission Notice

Warning

Operating RF transmitting equipment may require appropriate licensing. Users are responsible for ensuring compliance with local regulations. Unauthorised transmission may result in legal penalties.
