Power Distribution

LimeSDR Mini board is powered from USB port (5V). Power delivery network consists of different power rails with different voltages, filters, power sequences.

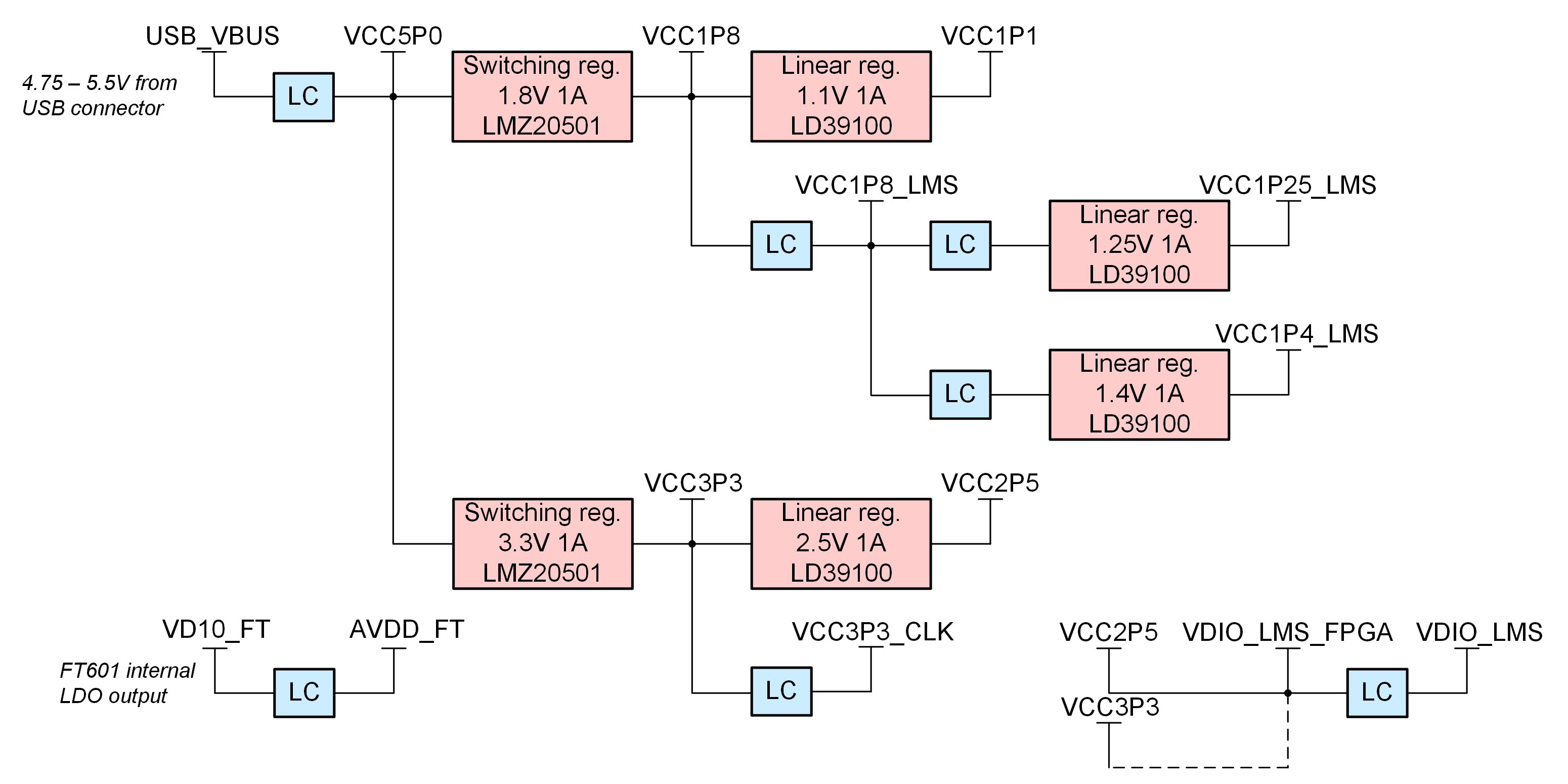

LimeSDR Mini board power distribution block diagram is presented in Figure 10.
