Board Versions

There are currently three versions of the LimeSDR Mini board: v2.2, v2.3 and v2.4.

v2.2, v2.3 and v2.4 boards should be treated the same in terms of hardware functionality and software support.

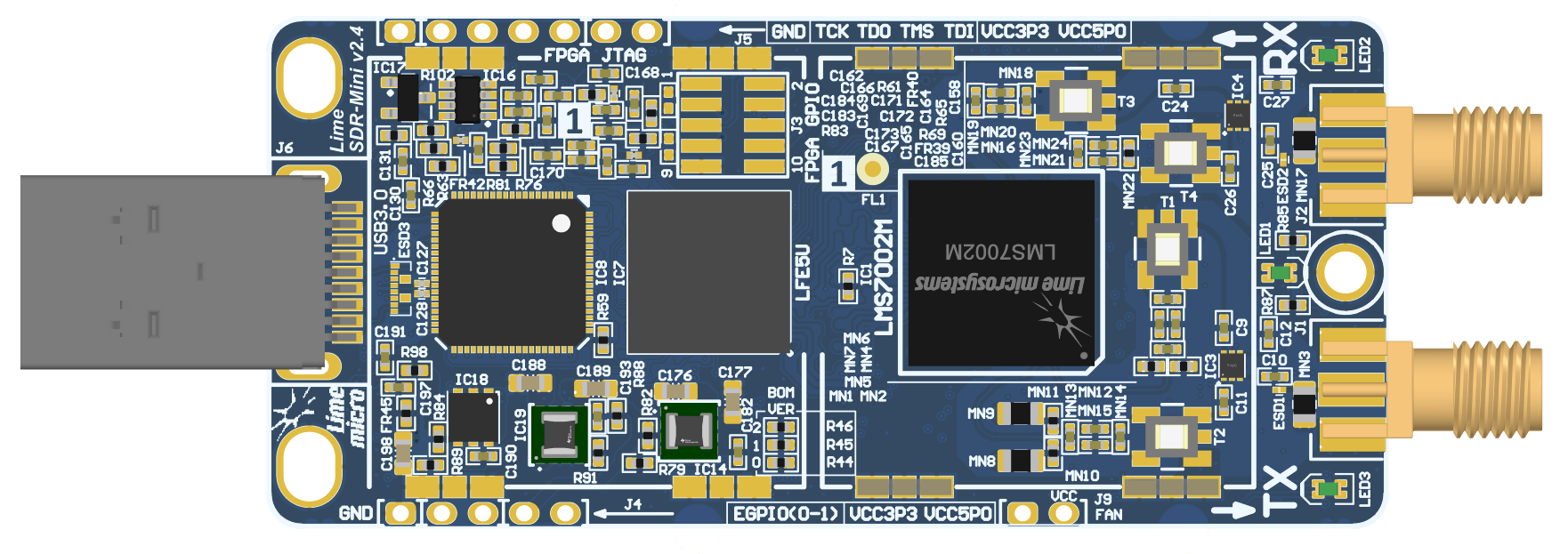

../_images/LimeSDR-Mini_v2.4_3D_top.png — Figure 1: LimeSDR Mini v2.4 board top view

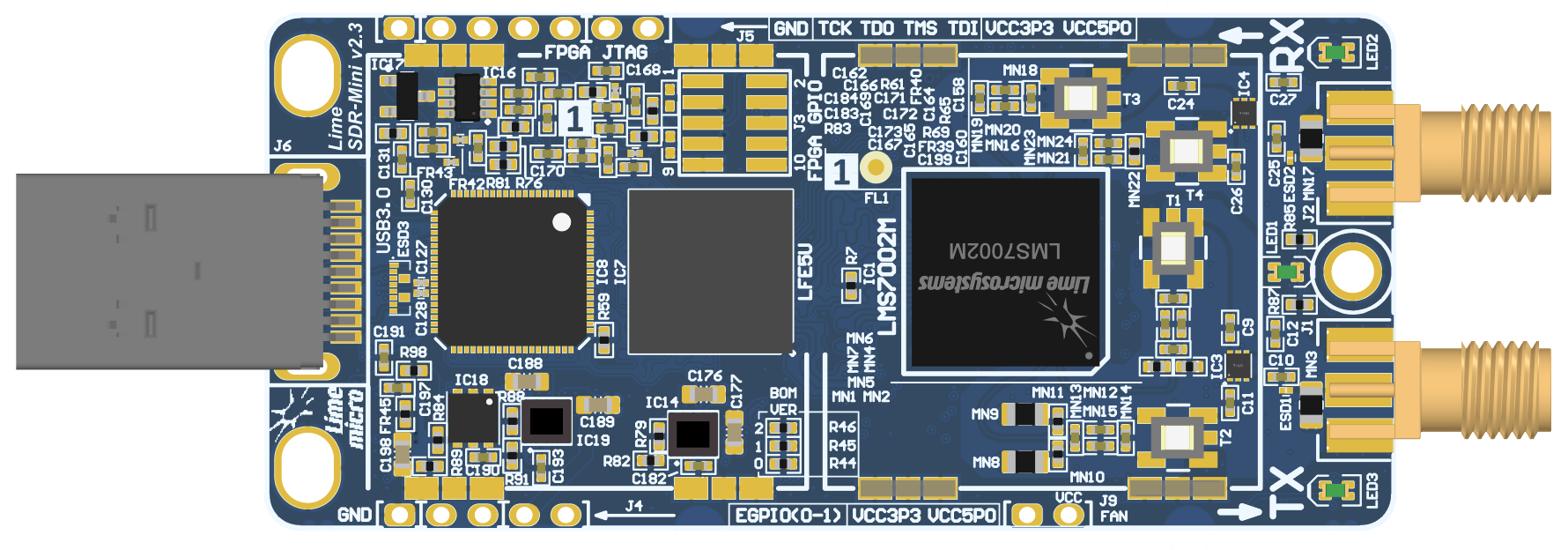

../_images/LimeSDR-Mini_v2.3_3D_top.png — Figure 2: LimeSDR Mini v2.3 board top view

../_images/LimeSDR-Mini_v2.2_3D_top.png — Figure 3: LimeSDR Mini v2.2 board top view
